iKON iK41 là bộ khuếch đại công suất 4 kênh tiên tiến kết hợp mật độ công suất cao với hiệu suất âm thanh tuyệt vời, DSP hiện đại và điều khiển mạng. Là bộ khuếch đại điều khiển chuyên dụng cho mảng dòng WPM của Martin Audio, TORUS 8 và các hệ thống khác được chọn, iK41 cũng có thể cung cấp khả năng khuếch đại đa kênh cho các loa Martin Audio được chọn.

Ứng Dụng
  • Bộ khuếch đại hệ thống chuyên dụng cho Martin Audio WPM, TORUS 8 và một số hệ thống khác
  • Bộ khuếch đại đa kênh đa năng cho hệ thống loa Martin Audio
Thông Số Kỹ Thuật
  • Thông Số Kỹ Thuật

    iKON iK41

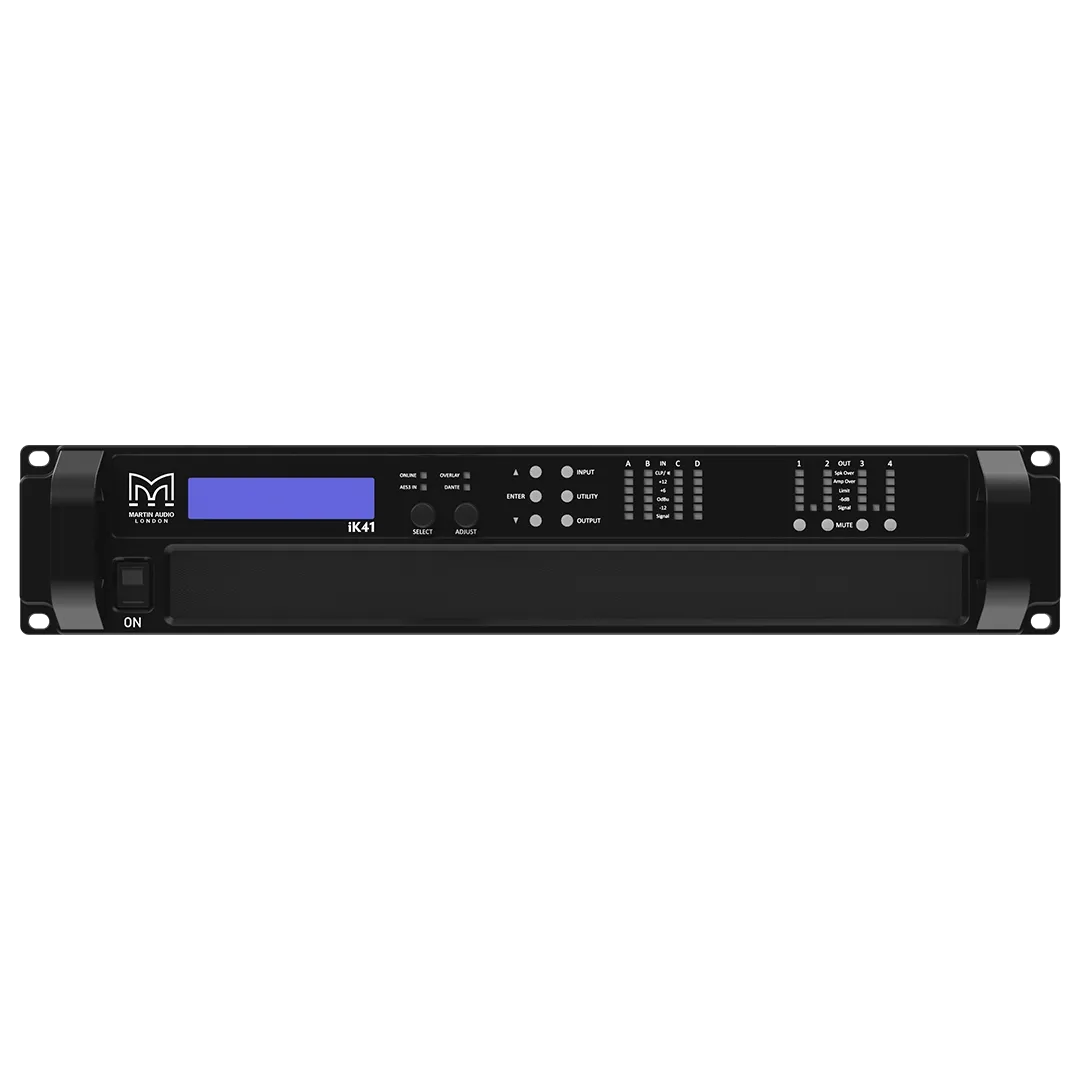

    The amplifier shall provide four channels of Class D amplification with 96kHz DSP (Digital Signal Processing) on all inputs and outputs. It shall have both analogue and AES3 digital inputs and shall incorporate capabilities for remote system control and monitoring via Ethernet. A front panel user interface with a backlit display shall provide local control.

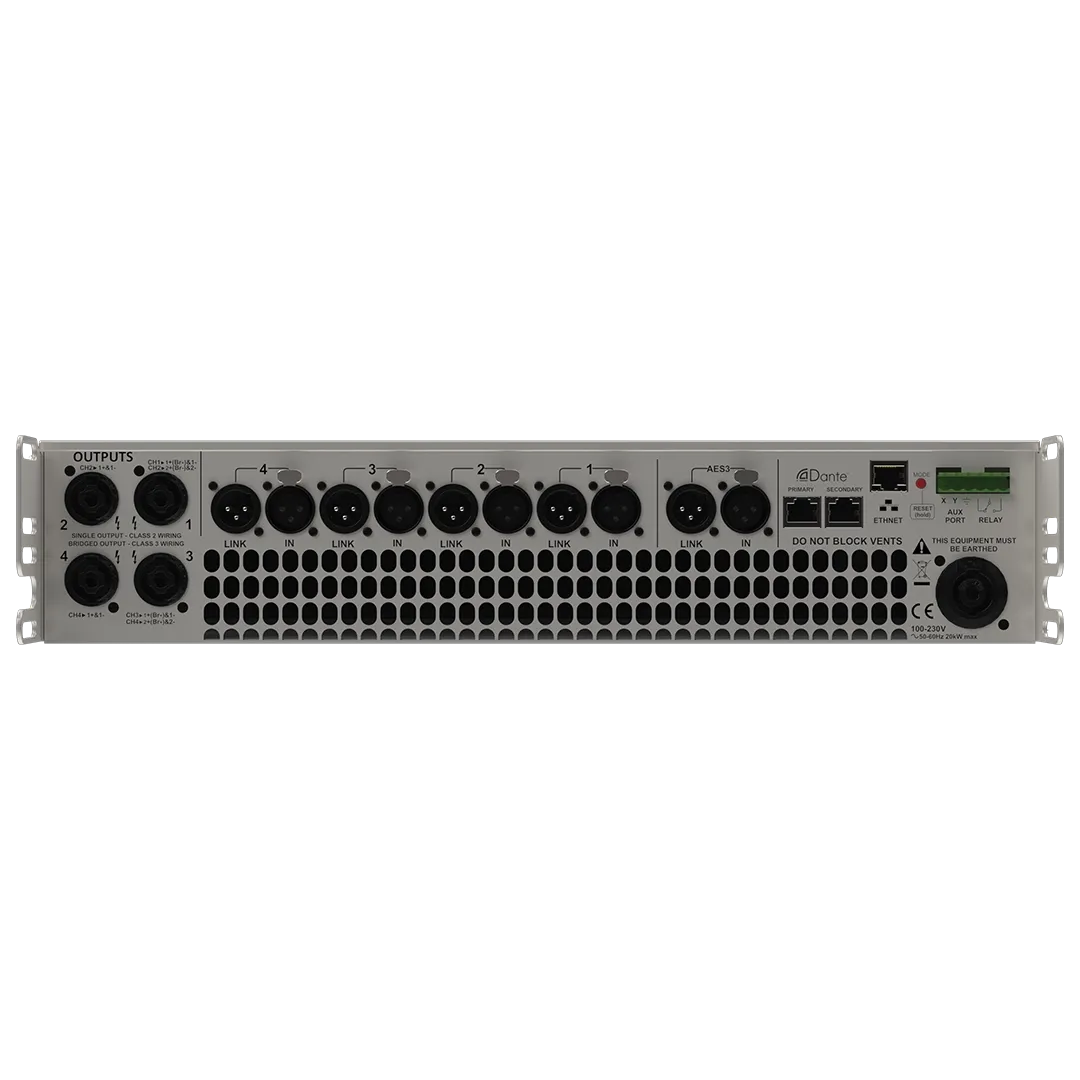

    It shall be equipped with four analogue input connectors, four analogue link connectors, a dual-channel AES3 input connector and a dual-channel AES3 link connector, as well as an Ethernet port. Dante™ digital audio network primary and secondary connectors shall also be provided for digital audio distribution and control. Four output connectors shall be of the Neutrik Speakon™ NL4 type, with output duplication within two connectors to facilitate bi-amp operation with a 4-core cable.


    Analog inputs shall each have an input impedance of 20kΩ, electronically balanced to ground.


    The amplifier shall be equipped with a switch mode power supply with auto-sensing global mains operation from 85 -240 V AC, 47 - 63Hz. Dual vari-speed fans with front-to-back airflow shall be employed for cooling and the amplifier shall incorporate comprehensive monitoring and protection functions to maintain safe operating conditions of both itself and the loudspeaker systems driven.


    The output power shall be 4 x 1500W into 2 ohms, 4 x 1500W into 4 ohms, 4 x 750W into 8 ohms, all channels driven.


    Dimensions (W x H x D) shall be 483mm x 2U/89mm x 357mm (19in x 2U/3.5in x 14.1in). Weight shall be 12.5kg (27.5lbs).


    The amplifier shall be the Martin Audio iKON iK41.

Dòng Sản Phẩm
Electronics

Martin Audio Electronics – Hoàn chỉnh hệ thống âm thanh.

Với danh tiếng đáng ngưỡng mộ trong việc sản xuất các dòng loa có hiệu suất vượt trội và độ bền cao, không có gì ngạc nhiên khi tên tuổi Martin Audio còn gắn liền với dải sản phẩm ampli và bộ điều khiển chất lượng cao — được tối ưu hóa để khai thác tối đa hiệu năng của các hệ thống loa Martin Audio.

Các dòng thiết bị điện tử của Martin Audio phù hợp cho cả môi trường lưu diễn và lắp đặt cố định, mang đến hiệu suất âm thanh mạnh mẽ, độ tin cậy tuyệt đối — đáp ứng yêu cầu khắt khe nhất trong các ứng dụng tăng cường âm thanh chuyên nghiệp hiện nay.
